SINGLE ENTRY SEALS NUS

A Overall Nominal Length: 3.45
B Feed Thru: 0.75
C Supplied Exp. ID: 0.75
C Recovered Max. ID: 0.25
D Nut Length: 1.00
Drill/Hole Size: 1.00

A Overall Nominal Length: 2.25
B Feed Thru: 0.75
C Supplied Exp. ID: 0.75
C Recovered Max. ID: 0.25
D Nut Length: 1.00
Drill/Hole Size: 1.00

A Overall Nominal Length: 3.75
B Feed Thru: 1.35
C Supplied Exp. ID: 1.50
C Recovered Max. ID: 0.50
D Nut Length: 1.10
Drill/Hole Size: 1.62

A Overall Nominal Length: 4.00
B Feed Thru: 1.55
C Supplied Exp. ID: 1.70
C Recovered Max. ID: 0.75
D Nut Length: 1.55
Drill/Hole Size: 2.00

A Overall Nominal Length: 6.00
B Feed Thru: 2.04
C Supplied Exp. ID: 2.75
C Recovered Max. ID: 0.75
D Nut Length: 2.00
Drill/Hole Size: 2.36

A Overall Nominal Length: 6.00
B Feed Thru: 2.04
C Supplied Exp. ID: 2.75
C Recovered Max. ID: 0.75
D Nut Length: 2.65
Drill/Hole Size: 2.36

A Overall Nominal Length: 12.00
B Feed Thru: 2.85
C Supplied Exp. ID: 4.00
C Recovered Max. ID: 1.43
D Nut Length: 4.5
Drill/Hole Size: 3.50

A Overall Nominal Length: 7.00
B Feed Thru: 2.85
C Supplied Exp. ID: 2.90
C Recovered Max. ID: 1.43
D Nut Length: 3.30
Drill/Hole Size: 3.50

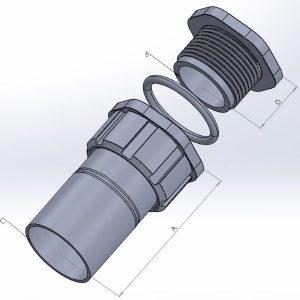

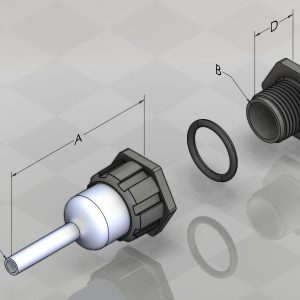

Three-part assembly – a rigid plastic nylon nut, an O-ring and a heat-shrinkable molded area. Nu-Tech cable entry seals meet the requirements of Navsea
