RIGHT ANGLE ENTRY SEALS NUS
Showing all 7 results
-
1-NUS-0R
$28.76View productB Feed Thru: 0.50;
Max Recovered C Diameter: 0.23;
Min Expanded C Diameter: 0.50;
P: 1.26;
D: 1.71;
Drill Hole Size Diameter: 1.00 -
2-NUS-1R
$23.15View productB Feed Thru 0.75;
Max Recovered C Diameter: 0.28;
Min Expanded C Diameter: 0.75;
P: 1.40;
D: 1.91;
Drill Hole Size Diameter: 1.00 -
2-NUS-2R
$26.55View productB Feed Thru: 0.75;
Max Recovered C Diameter: 0.33;
Min Expanded C Diameter: 0.75;
P: 1.70;
D: 2.21;
Drill Hole Size Diameter: 1.00 -

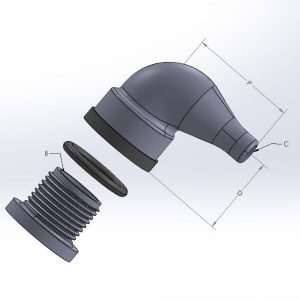

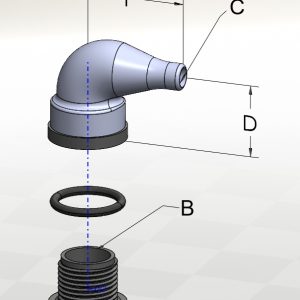

2X-NUS-2R
$28.58View productB Feed Thru: 0.75;
Max Recovered C Diameter: 0.33;
Min Expanded C Diameter: 0.75;
P: 1.70;
D: 1.43;
Drill Hole Size Diameter: 1.00 -

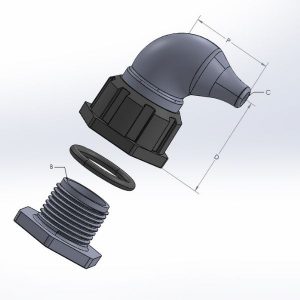

3-NUS-3R
$30.59View productB Feed Thru: 1.07;
Max Recovered C Diameter: 0.38;
Min Expanded C Diameter: 1.07;
P: 2.10;
D: 2.51;
Drill Hole Size Diameter: 1.38 -
3X-NUS-3R
$32.60View productB Feed Thru: 1.35;
Max Recovered C Diameter: 0.38;
Min Expanded C Diameter: 1.35;
P: 2.10;
D: 2.75;
Drill Hole Size Diameter: 1.62 -
4-NUS-4R
$38.88View productB Feed Thru: 1.55;
Max Recovered C Diameter: 0.62;
Min Expanded C Diameter: 1.55;
P: 3.10;
D: 3.46;
Drill Hole Size Diameter: 2.00
